Element Tour A.I. Core



Storm Element Tour A.I. Core

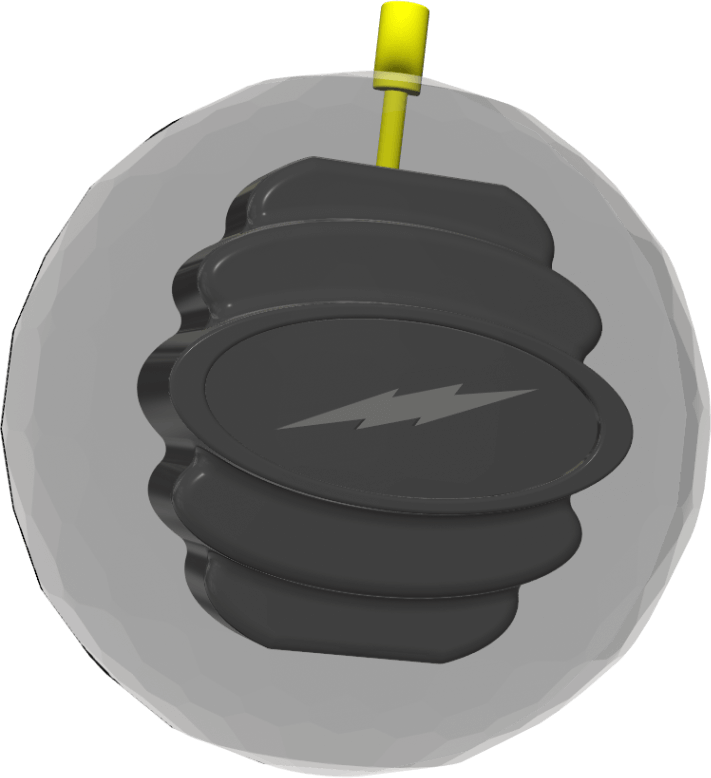

The stacked ellipse design of the Element Core places the smaller ellipses towards the ends of the X-Axis and the widest ellipse at the center of the Y-Axis. Conceptually opposite to cavity designs featured in the Crux™ and Absolute™, the Element Core dynamics will change more between different layouts with this shape because of it. This center heavy concept places the largest ellipse in the geographic center of the ball. More mass towards the center lowers the RG and, in conjunction with the A.I. Core, makes the Element weight block one of the lowest RG asymmetrical designs Storm has ever had. Normally on asymmetric weight blocks, the thinnest portion creating the asymmetry is very close to the Y-Axis. Stairstep asymmetry is the opposite of that. The widest part is at the Y-Axis which would normally decrease asymmetry, but each subsequent ellipse is offset and skinnier than the previous one which creates asymmetry with each stairstep.

Core Type
Asymmetric
16 pounds
RG
2.470
Diff
0.035
MB Diff
0.013
15 pounds
RG
2.470
Diff
0.035
MB Diff
0.014
14 pounds
RG
2.510
Diff
0.036
MB Diff
0.010
13 pounds
RG
2.560
Diff
0.034
MB Diff
0.011
12 pounds
RG
2.580
Diff
0.031
MB Diff
0.009
